IFD Interface with JPI EDM760
print icon

The Following Interface Information is "FOR REFERENCE USE ONLY" and is not FAA Approved Data.  Please see the applicable STC Installation manuals, or other Approved documentation for installation approval.

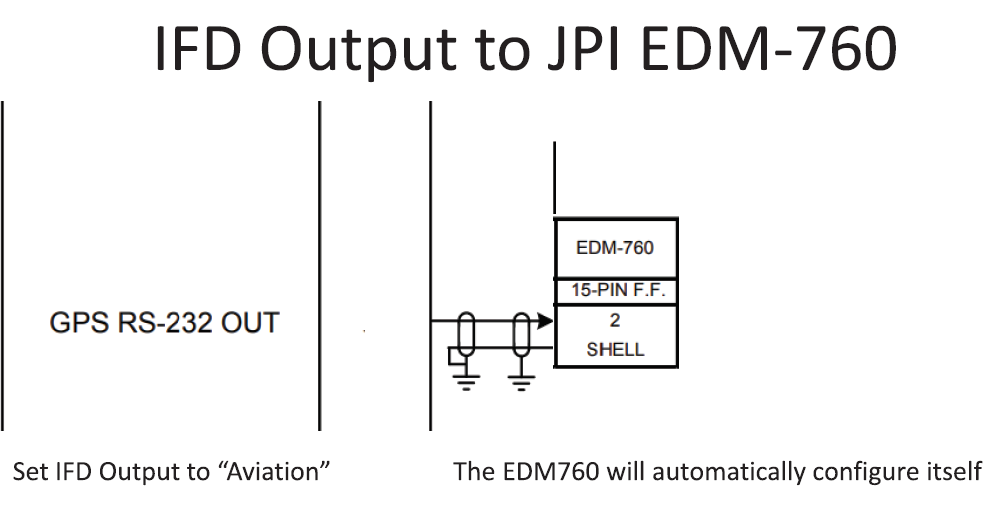

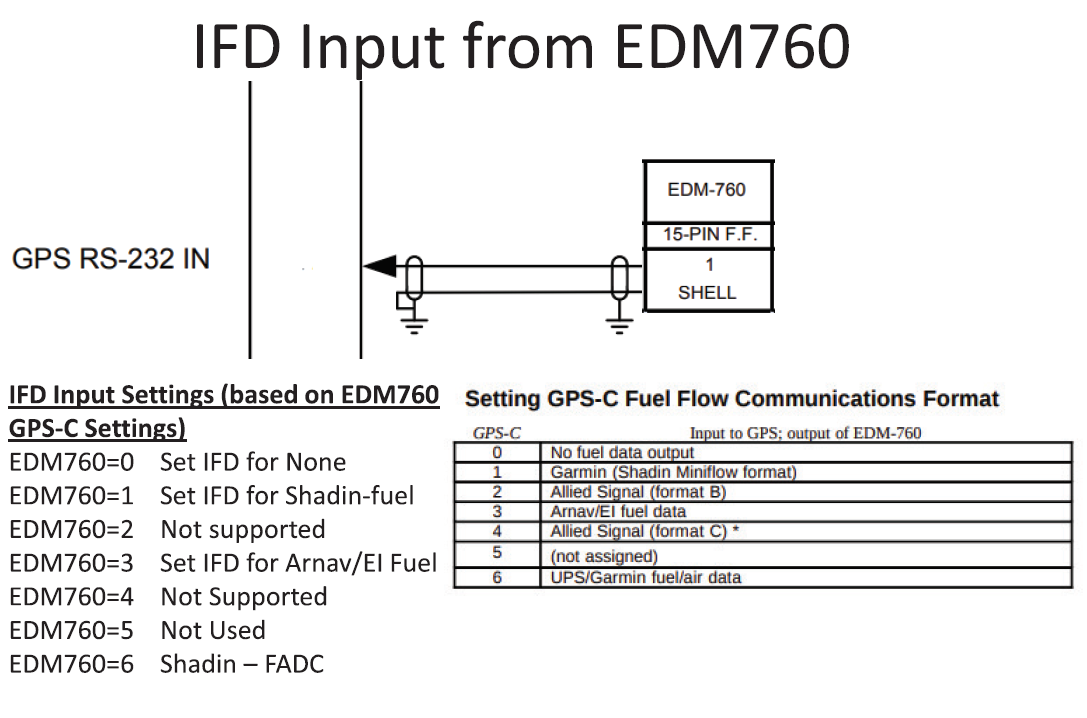

IFD Interface with JPI EDM760



https://desk.zoho.com/DocsDisplay?zgId=58375072&mode=inline&blockId=b2w5v6aa24b1056344b4881a2e105ea361c60

https://desk.zoho.com/DocsDisplay?zgId=58375072&mode=inline&blockId=b2w5ve134509f5eab4ff4a35e23da271d7dd2
