IFD interface to Shadin MiniFlo-L
print icon

The Following Interface Information is "FOR REFERENCE USE ONLY" and is not FAA Approved Data.  Please see the applicable STC Installation manuals, or other Approved documentation for installation approval.

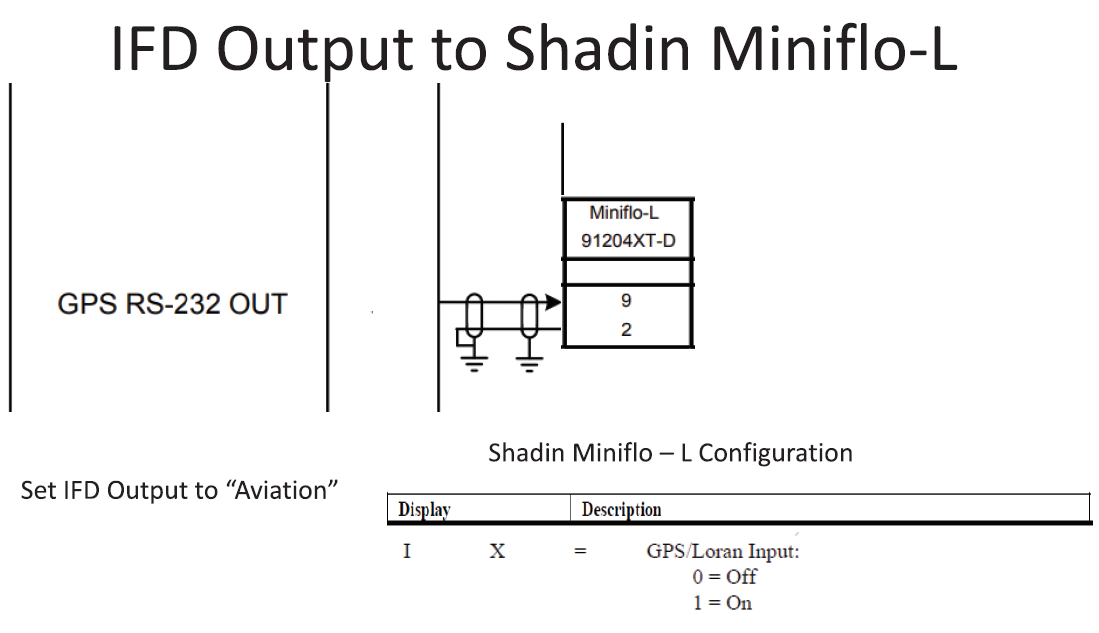

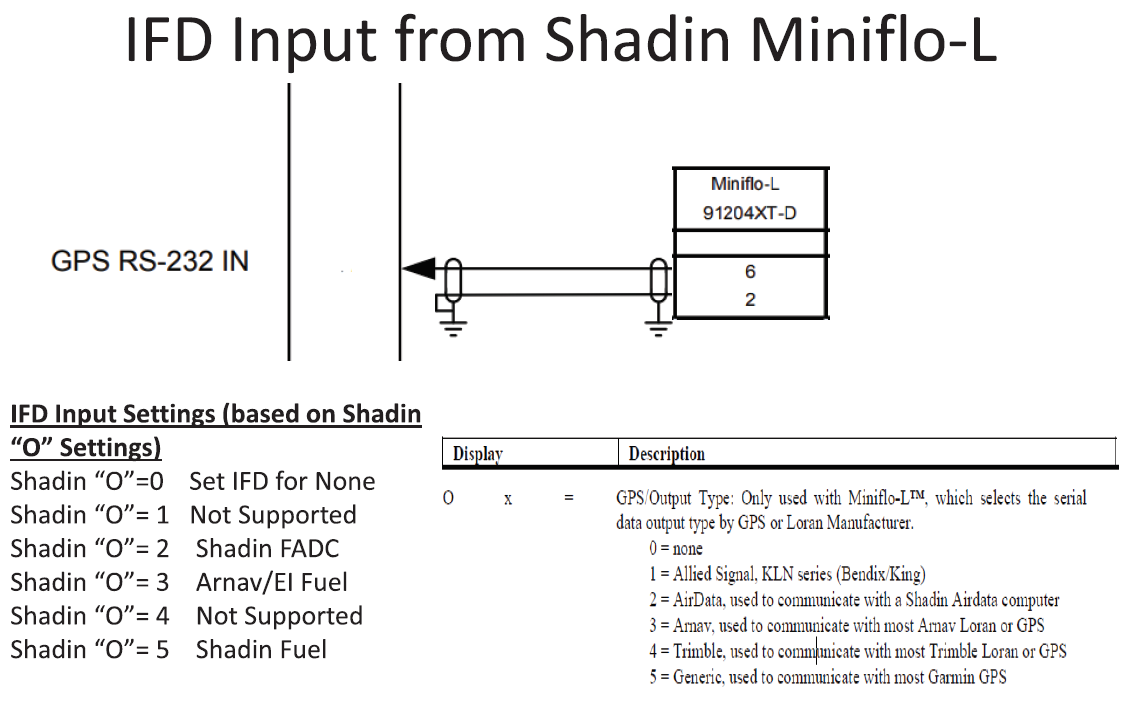

IFD interface to Shadin MiniFlo-L



https://desk.zoho.com/DocsDisplay?zgId=58375072&mode=inline&blockId=9ka6ed8184371ce5d48a998c2092a3bec3b6e

https://desk.zoho.com/DocsDisplay?zgId=58375072&mode=inline&blockId=9ka6e89626f7a6a3b4fb7a7a959fff72ad844
